Aluminum Expanded Metal Sheet

Name: Aluminum Expanded Metal Sheet
Brand: HESLY
Price: 30.00 USD

Wholesale Aluminum Expanded Metal Sheet from china suppliers

Brand Name : HESLY

Model Number : HEM210

Certification : ISO9001

Place of Origin : HESLY Group, China

MOQ : 10 square meters

Price : US$30.00 to 50.00/square meters

Payment Terms : T/T, L/C, D/P at sight, Western Union

Supply Ability : 1000 square meters/day

Delivery Time : 7 working days/20'GP

Packaging Details : Pallet/Plywood Box

Material : Aluminium Plate

Thickness : 0.8mm to 2.0mm

Aperture : 40X80mm/50X100mm

Surface Treatment : Raw material color OR Oxide Coating

Contact Now

Aluminium Expanded Metal Sheet for Architectural Decorative

Aluminum expanded metal is an aluminum sheet that has been simultaneously slit and stretched into a rigid, non-raveling mesh with diamond-shaped openings. It provides a screening effect, allowing light, sound, air and water to pass through.

In architectural building, the uses of Aluminum Expanded Metal products are becoming popular. A variety of architectures made of expanded metal in the form of sheets or coils are used for wall construction. Using the latest technology made by cutting and expansion, the aluminum expanded metal are more lightweight but strong bearing capacity. Conventional wall construction is a major net steel diamond-shaped hole, used in high-rise building, civilian room, plants and other large plastering works for a mortar substrate mount strong, cracking, earthquake and other characteristics of a modern architectural building in the new metal building materials.

Expanded metal terminology

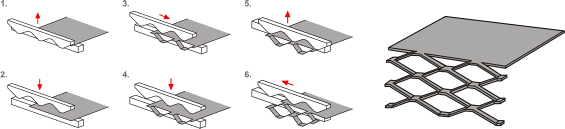

Expanded metal is a material with cuts on its whole surface.
Those cuts are done by mutual staggered slitting without waste of material and cuts are formed by expanding.
Expanded metal is made from steel sheets or coils.
Expanded metal meshes are not formed by knitting or welding.
Therefore expanded metal can be cut to any required dimensions without loss of its solidity.

Aluminum Expanded Metal Sheet

SPECIFICATIONS OF ALUMINIUM EXPANDED METAL MESH
Material	Stainless steel plate, Aluminum plate, Copper plate, Iron Plate, Al-Mg alloy etc.
Types of hole	Diamond, scale hole, hexagon, fancy, tortoise shell, etc.
LWD	4.5-200mm
SWD	2.5-80mm
Thickness	0.5-8mm
Strand width:	0.5-10mm
SWM:	Center from node tonode of thelength of the short diagonal.
LWM	enter from node tonode of thelength of the long diagonal.
SWD	The length of the short diagonal of the hole.
LWD	The length of the long diagonal of the hole.
Strand	Make a silk stem length of the metal plate used.
Bond	Two-node connections.
Surface treatment	PVC coated, Galvanized, Epoxy resin, anodic oxidation, antirush paint etc.

General Specs of Al Expanded Metal

Mesh SWD X LWD	Strand Width	THK	Max Width	Weight Alu. △	Weight M.G.S Steel ☆	Open Area
(mm)	(mm)	(mm)	(mm)	Kg/m²	Kg/m²	(%)
11X50	3	2.0	2500	2.95	----	45
11X50	3	2.5	2500	3.69	----	45
36X120	16	2.5	2500	6.02	----	12
36X120	16	3.0	2500	7.22	----	12
35X76	12	2.0	2500	3.71	----	30
35X76	12	2.5	2500	4.65	----	30
15X80	2.0	2.0	2500	1.44	----	73
15X80	2.5	2.5	2500	2.25	----	66
24X60	10	3.0	2500	6.77	----	17
24X60	10	2.5	2500	5.64	----	17
22X45	5.0	2.0	2500	2.46	----	55
22X45	5.0	2.5	2500	3.07	----	55
28X50	5.0	2.5	2500	2.41	----	65
28X50	6.0	3.0	2500	3.48	----	57
20X40	3.0	3.0	2500	2.43	----	70
20X40	4.0	3.0	2500	3.25	----	60
10X115	2.5	2.5	2500	3.38	----	50
10X115	3.0	3.0	2500	4.87	----	40
75X155	25	2.5	2500	4.51	----	33
75X155	25	3.0	2500	5.41	----	33
“△” : Aluminium Material; “☆”: Mild Steel / Galvanised Steel / Stainless Steel

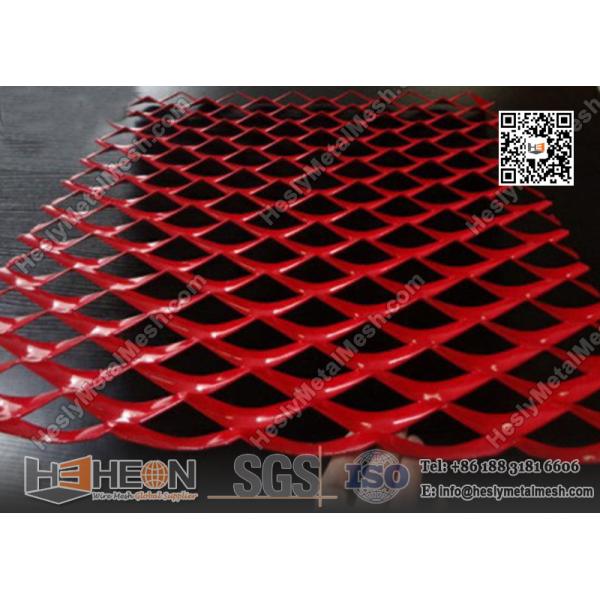

Reference Photos


Aluminium Expanded Metal Mesh	Aluminium Expanded Metal Mesh

Al Expanded Metal	Aluminium Expaned Metal Sheet

Aluminium Expanded Metal Sheet	Aluminium Expanded Metal Sheet

Aluminium Expanded Metal Facade	Aluminium Expanded Metal Facade
