Welded Gabion Protective Barrier | Military Defensive Barrier China Supplier

Brief Introduction

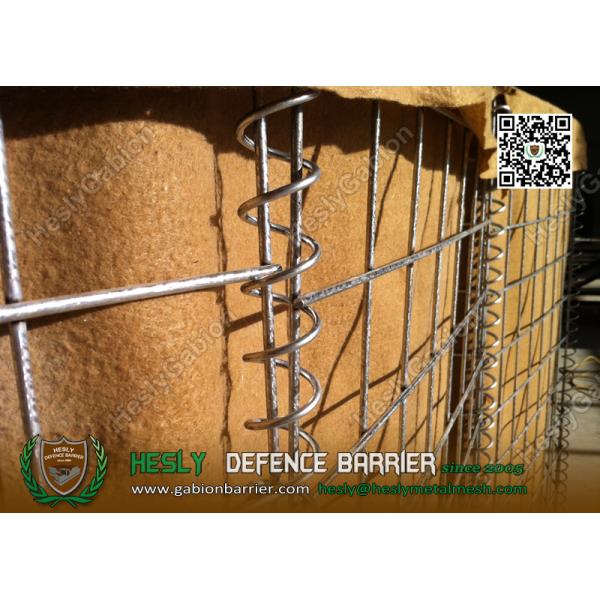

The HESLY welded gabion Protective Barriers unit is a multi-cellular barrier system manufactured from welded Hot-dipped galvanised steel wire mesh and joined with vertical, helical-coil joints. The units are lined with a heavy-duty non-woven polypropylene geotextile. When joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.
About the newest Recoverable Defensive Barriers
The recoverable Defensive Barriers provides the same high-specification welded mesh and geotextile as standard gabion barrier units, but the new recoverable feature means that individual cells can be opened by removing just one pin, allowing the fill material to be released from the unit.
Recoverable gabion barrier units are deployed in exactly the same way as the standard defensive barrier products. Once the mission is over, efficient recovery for disposal can begin. To recover the units for disposal simply open the cell by removing the pin, this allows the fill material to flow freely from the cell. The units can then be recovered fully intact and flat packed for transportation for recycling or disposal, providing substantial reduction in logistical and environmental impact.

Gabion Barrier	Recoverable Defensive Barrier	Military Security Barrier

Protection is afforded by the fill material of the structure as a consequence of its mass and physical properties, allied with the proven dynamic properties of Concertainer units.
Whether used as a preventative barrier or to define boundaries, HESLY Gabion Barrier units have been employed to safeguard personnel, vehicles, equipment, facilities and other critical assets in a variety of military, peacekeeping, humanitarian and civilian operations.

Applications include:

General Specification Sheet - HESLY Defensive Barriers
Model	Height	Width	Length	Structure
MDB-1 5442	1.37m(54")	1.06m(42")	10m(32'9")	5cells+4cells
MDB-2 2424	0.61m(24")	0.61m(24")	1.22m(4')	2cells
MDB-3 3939	1.00m(39")	1.00m(39")	10m(32'9")	5cells+5cells
MDB-4 3960	1.00m(39")	1.52m(60")	10m(32'9")	10cells+10cells
MDB-5 2424	0.61m(24")	0.61m(24")	3.05m(10')	5cells
MDB-6 6624	1.68m(66")	0.61m(24")	3.05m(10')	5cells
MDB-7 8784	2.21m(87")	2.13m(84")	27.74m(91')	4cellsX2+5cells
MDB-8 5448	1.37m(54")	1.22m(4')	10m(32'9")	5cells+4cells
MDB-9 3930	1.00m(39")	0.76m(30")	9.14m(30')	6cells+6cells
MDB-10 8760	2.21m(87")	1.52m(60")	32.5m(100')	5cellsX6
MDB-11 4812	1.22m(4')	0.30m(12")	1.22m(4')	2cells
MDB-12 8442	2.13m(84")	1.06m(42")	33m(108')	5cellsX6
NOTE: OEM/ODM is available. Barrier dimensions can be custom-made.

Reference Photos

Defensive Barrier with Grey Geotextile	Defensive Barrier with Grey Geotextile
HESLY Defensive Barrier (Beige Geotex.)	HESLY Defensive Barrier (Beige Geotex.)
Welded Gabion Flood Barrier	Welded Gabion Flood Barrier
Welded Gabion Barrier with White Geotextile	Welded Gabion Barrier with White Geotextile

Welded Gabion Protective Barrier Images
