Aluminium Expanded Metal For Building Facade

Name: Aluminium Expanded Metal For Building Facade
Brand: HESLY
Price: 30.00 USD

Wholesale Aluminium Expanded Metal For Building Facade from china suppliers

Brand Name : HESLY

Model Number : HEM210

Certification : ISO9001

Place of Origin : HESLY Group, China

MOQ : 10 square meters

Price : US$30.00 to 50.00/square meters

Payment Terms : T/T, L/C, D/P at sight, Western Union

Supply Ability : 1000 square meters/day

Delivery Time : 7 working days/20'GP

Packaging Details : Pallet/Plywood Box

Material : Aluminium Plate

Thickness : 0.8mm to 2.0mm

Aperture : 40X80mm/50X100mm

Contact Now

Aluminium Expanded Metal Mesh Facade

In architectural building, the uses of Aluminum Expanded Metal products are becoming popular. A variety of architectures made of expanded metal in the form of sheets or coils are used for wall construction. Using the latest technology made by cutting and expansion, the aluminum expanded metal are more lightweight but strong bearing capacity. Conventional wall construction is a major net steel diamond-shaped hole, used in high-rise building, civilian room, plants and other large plastering works for a mortar substrate mount strong, cracking, earthquake and other characteristics of a modern architectural building in the new metal building materials.

General Specs of Al Expanded Metal

Width: maximum up to 3M.
Thickness: For Aluminum,maximum up to 12mm
Aperture size: 2mm × 1mm ---300mm × 120mm.
Strand width: 0.5mm--50mm.

Specification of Expanded Metal Mesh

Specification of Expanded Metal Mesh
Sheet Thickness	Opening in Width mm	Opening in Length mm	Stem	Roll Width mm	Roll Length mm	Weight kg/m2
0.5	2.5	4.5	0.5	0.5	1	1.8
0.5	10	25	0.5	0.6	2	0.73
0.6	10	25	1	0.6	2	1
0.8	10	25	1	0.6	2	1.25
1	10	25	1.1	0.6	2	1.77
1	15	40	1.5	2	4	1.85
1.2	10	25	1.1	2	4	2.21
1.2	15	40	1.5	2	4	2.3
1.5	15	40	1.5	1.8	4	2.77
1.5	23	60	2.6	2	3.6	2.77
2	18	50	2.1	2	4	3.69
2	22	60	2.6	2	4	3.69
3	40	80	3.8	2	4	5.00
4	50	100	4	2	2	11.15
4.5	50	100	5	2	2.7	11.15
5	50	100	5	1.4	2.6	12.39
6	50	100	6	2	2.5	17.35
8	50	100	8	2	2.1	28.26

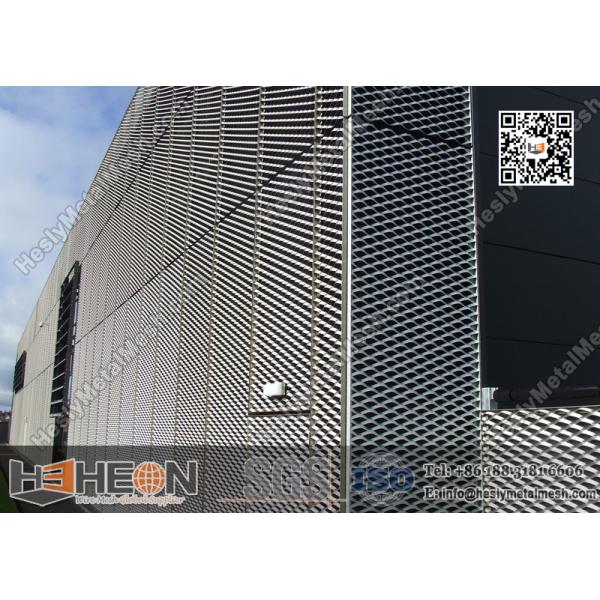

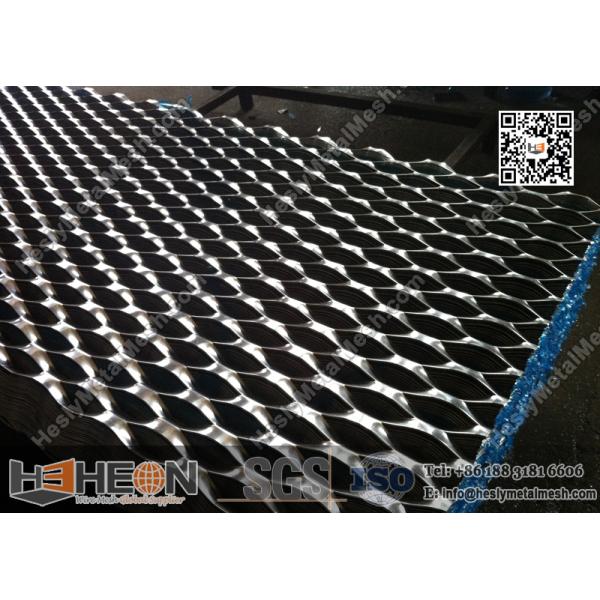

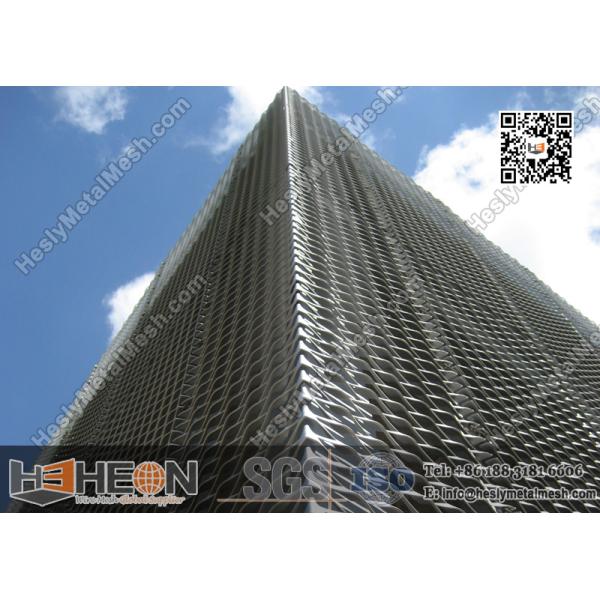

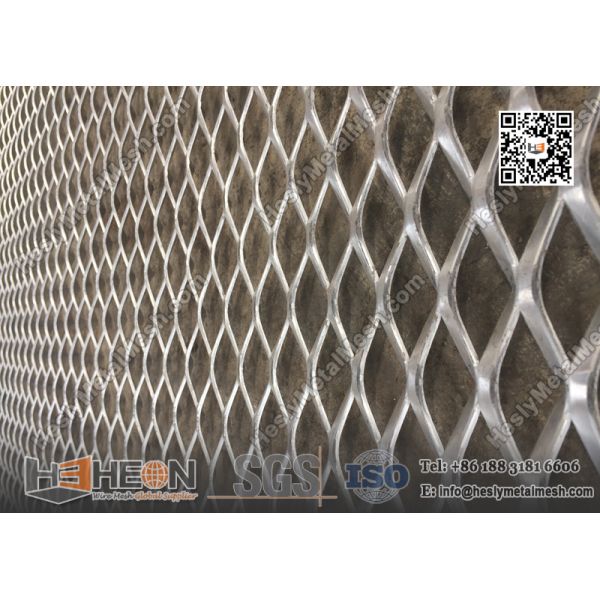

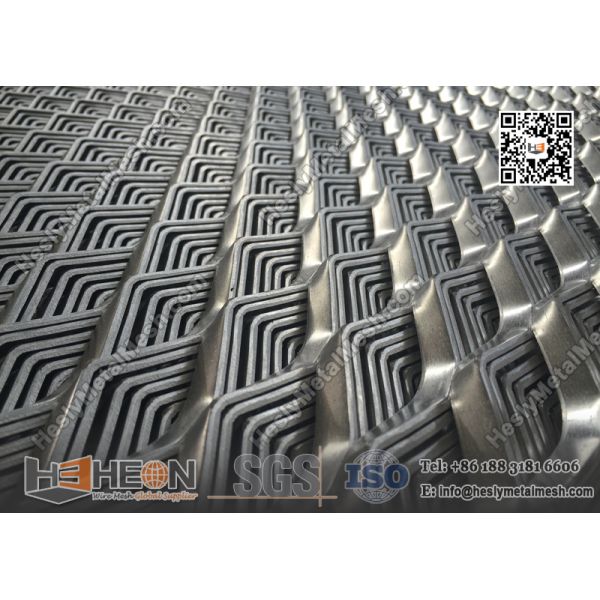

Reference Photos


Aluminium Expanded Metal Mesh	Aluminium Expanded Metal Mesh

Al Expanded Metal	Aluminium Expaned Metal Sheet

Aluminium Expanded Metal Sheet	Aluminium Expanded Metal Sheet

Aluminium Expanded Metal Facade	Aluminium Expanded Metal Facade

Aluminium Expanded Metal For Building Facade Images
